BQT Solutions Biometric Readers. Ultimate Security and Flexibility
Your level of security, your way.

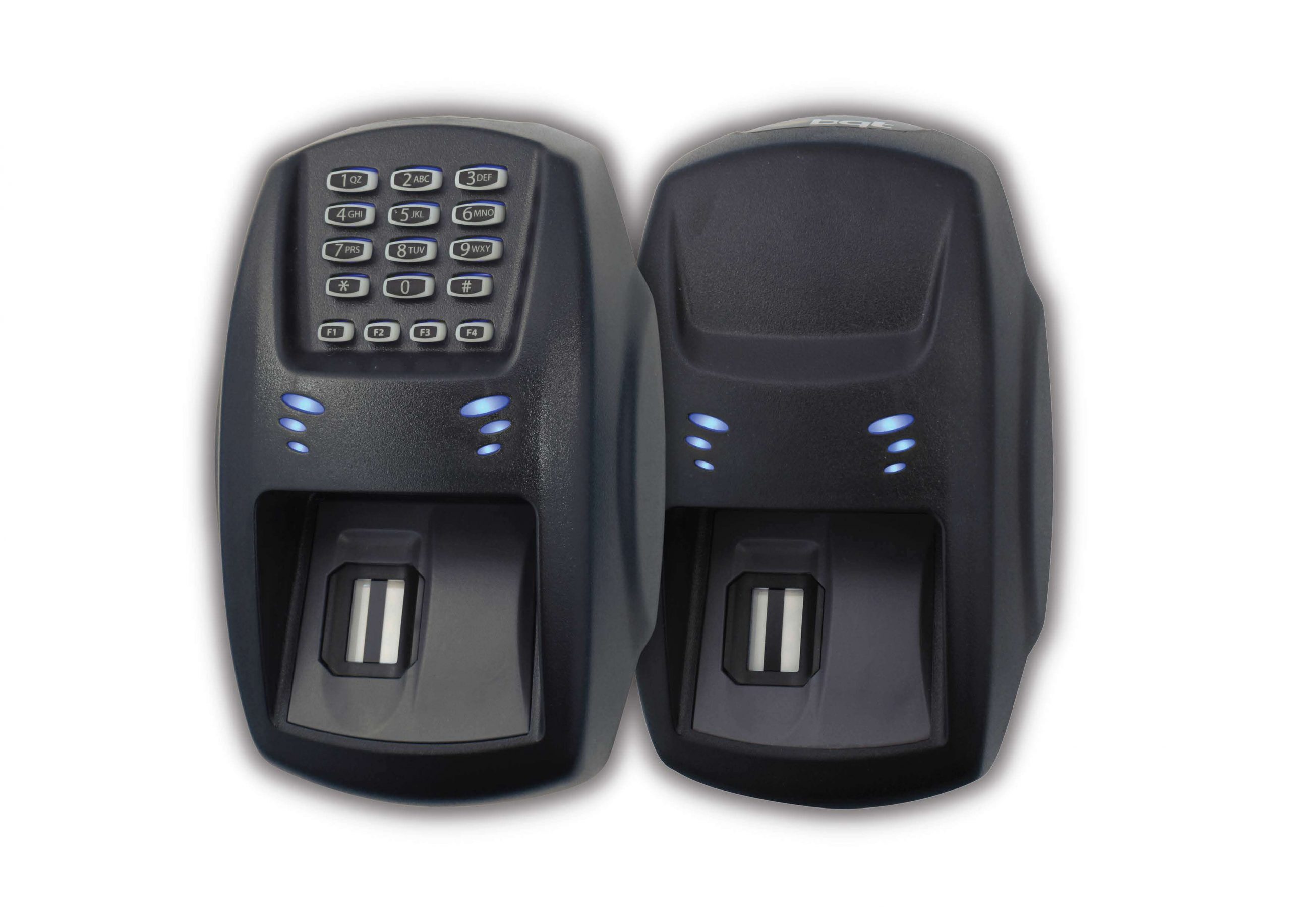

BQT’s line of Biometric Readers combines our traditional line of readers with leading-edge bio-verification technologies including finger and Iris reader technologies for secure options right up to Military grade encryption.
| Model | BioXK | Iris ID - iCAM7000 |
| Credential Compatibility | MIFARE Classic, MIFARE DESFire EV1/EV2 | MIFARE Classic, MIFARE DESFire EV1/EV2 |
| Mounting | Mounting bracket | Flush or Recess Mounting |
| Connector Type | Flying lead | Power & ethernet ports (cable supplied) |
| Dimension | 190mm (7.48”) X 120mm (4.72”) X 60mm (2.36”) |
178mm (7.01” ) X 211mm (8.31”) X 64mm (2.52”) |
| Colour | Charcoal | Black or Titanium |
| Operating Voltage Range | 8VDC to 16VDC | 24VDC @ 1A or 12VDC @2A from power over ethernet (PoE) |
| Current Draw (Max) | 380mA | 12~24 VDC, 2.0 Amps @ 12 VDC / 24W |
| Operating Temperature Range | -10°C to +50°C (+14°F to +122°F) | 0°C to 45°C (32°F to 113°F) |
| IP Rating | IP65 | IPXX |
| Biometric Sensor Type | Optical (Morpho) Fingerprint |
Face camera CMOS - 5MP IRIS |
| Fake Finger Detection | Yes | NA |
| Authentication Modes | Template on Card Template and PIN on Card (Finger Only (1:N), Card + Finger (1:1), Card + Finger + PIN (1:1) available) |
Template on Card Template and PIN on Card (Iris Only (1:N), Card +iris (1:1), Card + iris + PIN (1:1) available) |
| Enrolment | Integrated Reader/Enrolment Device | Separate (but interchangable) enrolment & identification modes |
| Controller Communication | Wiegand OSDP Encrypted RS485 |
Ethernet (LAN,WAN),
RS232 |
| Input Control | Buzzer/LED external control | Customizable, color LCD touch screen |
