Weatherproof Locks

Durability against the elements is key to keeping your site secure come rain, hail or shine.

View Products
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Benefits

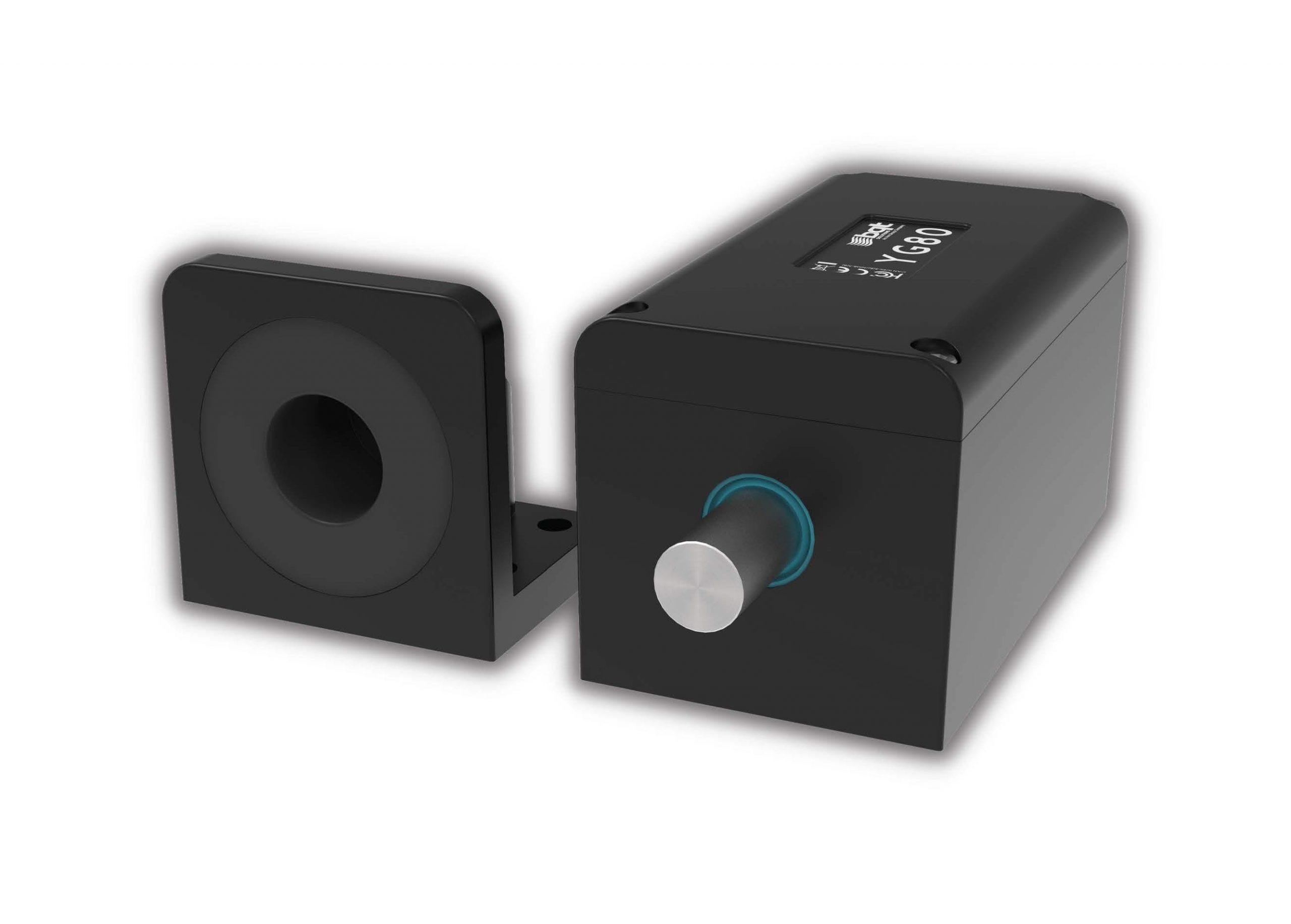

    • Ideal for many situations and challenging jobs, we say around the office that the YG80 is ideal for 'securing any, and all large openings'. The Orca has been used globally to secure and strengthen security for all kinds of use cases, from roller doors to security gates, cargo containers, and even animal enclosures.
    • Its versatility and ability to work in all kinds of environments. The Orca lock is reliable inside and out, in the 40°C summer heat and the worst storms during winter. It holds an IP67 rating and is reliable in all situations, it even comes with and onboard heater.
    • Offering feedback to the control panel of the door and bolt positions is a standard feature of the YG80. Monitoring the position of the door and whether the bolt pin is extended or retracted provides vital information needed to ensure a site is safe and secure. In addition, a tamper monitor will let you know if the lock is being attacked.
    • Flexibility in installation as the Orca only requires low voltage power and signals to operate and can connect into any access system making wiring easy.
    Model Comparison

    Lock Model Comparison

    Name  Application  Lifecycle  Holding Gorce  Lock Dimentions Bolt Pin Dimnetions  Power Usage
    YD30
    ( Cobalt)     		 Securung misaligned  Double acting doors, relasing under
    sideload pressure     		 300,000 1000kg 255x30x51 10mm thick, 13mm extension
    (2 Pieces)    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A
    YD30M
    ( Cobalt Mini)    		 Securung misaligned  single acting doors, relasing under
    sideload pressure     		 300,000 1000kg 160x30x51 10mm thick, 13mm extension Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A
    YD25 Single Acting Doors 1,000,000 1000kg 210x25x42 12.7mm,
    16mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD25L Double Acting Doors 1,000,000 1000kg 210x25x43 12.7mm,
    16mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD25K Single Acting Doors 1,000,000 1000kg 210x25x44 12.7mm,
    16mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD38 Single Acting Doors 1,000,000 2000kg 203x37.5x44 14.2mm,
    14mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 150mA - 90mA
    Current (Peak) 1A - 0.5A
    YD38L Single Acting Doors 1,000,000 2000kg 203x37.5x45 14.2mm,
    14mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 150mA - 90mA
    Current (Peak) 1A - 0.5A
    YG80 Securing all large openings,
    High strength, extream heat and cold enviroments     		 300000 5000kg 80x80x150 18mm,
    30mm extension    		 Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A - 2A with heater
