Iris ID takes leading-edge iris scanning technology into access control solutions to offer a secure contactless technology for identifying and approving access to employees. Unlike other forms of authentication, such as passwords or access cards, biometric recognition provides a strong link between an individual and a data record. One area where Biometrics delivers the greatest benefit is protection against fraudulent identity access. Iris ID takes biometric recognition contactless – ensuring the health and safety of employees and secure protection for your assets and IP.

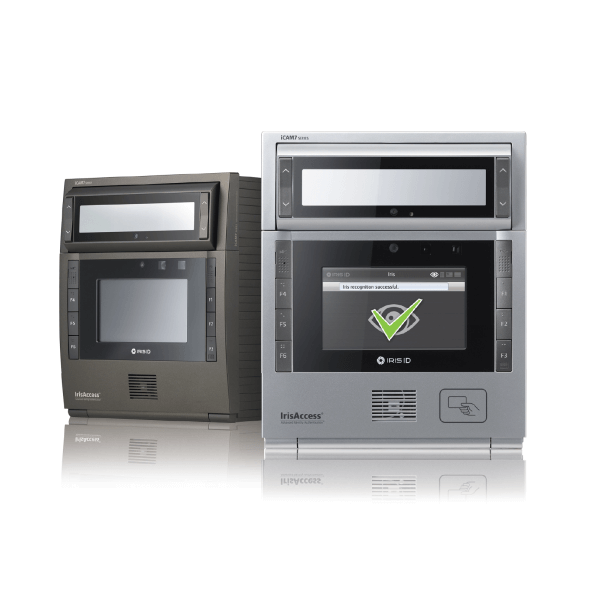

Iris ID works where other Biometrics won't, whether due to PPE, Scars, or dirty environments. iCAM 7S needs a clear vision of an iris to authenticate identity and approve access. This technology is being deployed globally in the most sensitive facilities to offer the highest protection of IP and personnel.
The iCAM 7S is designed to integrate many third-party capabilities, including surveillance cameras and card capture. These integrations provide the base of a highly effective integrated security system for additional surveillance and increased assurance in access control approval.
Working with your current system, the iCAM 7S can be connected to your existing central server and panel, allowing for access configuration requirements at the central server as opposed to on-site. Ideal for larger organisations requiring high-security systems, remote management allows access configuration to be done away from a reader.
IRIS ID's software allows the management team to add and remove access as and where required for employees, contractors, and visitors alike. The software can define time, shifts, daily schedules, and holidays, aadminister employees to comply with "On-Site" and "Off-Site" procedures and Restrict access to off-duty employee.
Encrypted securely onto the card, fingerprints are stored as an encrypted template file, unable to be duplicated or used anywhere else, and is impossible to convert back into a fingerprint image. The file is used to confirm the user's identity but is never stored on the reader or any backend database. Instead, the data is only stored on the user's access card, meaning only the user has physical control over the template.
BQT Solutions understands there are many concerns around the privacy and security of a user's biological data. It is of utmost importance to BQT to ensure data is not compromised. Therefore, BQT Solutions does not collect any data, only transforming fingerprints templates into secure encrypted data files for the sole purpose of access control with assigned BQT readers.
| Dimensions (W x H x D) | 7.01” x 8.31” x 2.52” (178mm x 211mm x 64mm) |
| Weight | 3.5lbs (1.6kg) |
| Power Input / Consumption | 12~24 VDC, 2.0 Amps @ 12 VDC / 24W |
| Status LED | Multi Colour - Red, Green, Blue for status and alarm indication |
| Iris Operating Range Indicator | Dual Colour - Orange (out of range), Green (in range) |
| Voice Indication | English and Korean standard, other languages available |
| Iris Capture Range | 11“~15” (28cm~38cm) |
| User Input | Six user definable Function Keys (iCAM7101S, iCAM7111S) |
| Touch Screen LCD Display | 4.3“ / 480 x 272 pixels (iCAM7101S, iCAM7111S) |
| Pin Pad | Pop-up on screen pin pad (iCAM7101S, iCAM7111S) |
| Flash | High output LED flash for face capture |
| Face Image Camera | Face camera CMOS - 5MP |
| Reader Database Capacity | 100,000 Users |
| Transaction Log Capacity | Up to 1,000,000 transactions stored on device, unlimited on server |
| Relays x 2(door, other) | Control for all electric locking mechanisms and auxiliary relay for user defined operation |
| Operating Temperature | 32°F~113°F (0°C~45°C) |
| Storage Temperature | -4°F~203°F (-20°C~95°C) |
| Humidity | Up to 90% non-condensing |
| Iris & Face Camera Rotation Angle | +35°/-25° |
| Communications | Ethernet (LAN, WAN), RS232, RS485, RS422 |
| Inputs / Outputs | Embedded Card Reader (Optional), Wiegand In, Wiegand Out, Dry Contact Relay x 2, Programmable GPIO x 4 |
| Certifications | CE, FCC, KC, Eye Safety, UL294, ISO Standard, IEC, KISA |
| Model Number | LCD Display / On-Screen Pin Pad | Card Reader | Colour |
| iCAM7000S-B | No | No | Black |
| iCAM7000S-T | No | No | Titanium |
| iCAM7010S-H1B | No | Yes | Black |
| iCAM7010S-H1T | No | Yes | Titanium |
| iCAM7101S-B | Yes | No | Black |
| iCAM7101S-T | Yes | No | Titanium |
| iCAM7111S-H1B | Yes | Yes | Black |
| iCAM7111S-H1T | Yes | Yes | Titanium |
| Accessories | Description | Colour |
| iCAM7-RMB | Recess Mount Kit | Black |
| iCAM7-RMT | Recess Mount Kit | Titanium |
| iCAM7-ST | Desktop Stand | Black |
| iCAM7-PWR | Power Supply | Black |
| Model | BioXK | Iris ID - iCAM7000 |
| Credential Compatibility | MIFARE Classic, MIFARE DESFire EV1/EV2 | MIFARE Classic, MIFARE DESFire EV1/EV2 |
| Mounting | Mounting bracket | Flush or Recess Mounting |
| Connector Type | Flying lead | Power & ethernet ports (cable supplied) |
| Dimension | 190mm (7.48”) X 120mm (4.72”) X 60mm (2.36”) | 178mm (7.01” ) X 211mm (8.31”) X 64mm (2.52”) |
| Colour | Charcoal | Black or Titanium |
| Operating Voltage Range | 8VDC to 16VDC | 24VDC @ 1A or 12VDC @2A from power over ethernet (PoE) |
| Current Draw (Max) | 380mA | 12~24 VDC, 2.0 Amps @ 12 VDC / 24W |
| Operating Temperature Range | -10°C to +50°C (+14°F to +122°F) | 0°C to 45°C (32°F to 113°F) |
| IP Rating | IP65 | IPXX |
| Biometric Sensor Type | Optical (Morpho) Fingerprint | Face camera CMOS - 5MP IRIS |
| Fake Finger Detection | Yes | NA |
| Authentication Modes | Template on Card Template and PIN on Card (Finger Only (1:N), Card + Finger (1:1), Card + Finger + PIN (1:1) available) | Template on Card Template and PIN on Card (Iris Only (1:N), Card +iris (1:1), Card + iris + PIN (1:1) available) |
| Enrolment | Integrated Reader/Enrolment Device | Separate (but interchangable) enrolment & identification modes |
| Controller Communication | Wiegand OSDP Encrypted RS485 | Ethernet (LAN,WAN), RS232 |
| Input Control | Buzzer/LED external control | Customizable, color LCD touch screen |
