BT512

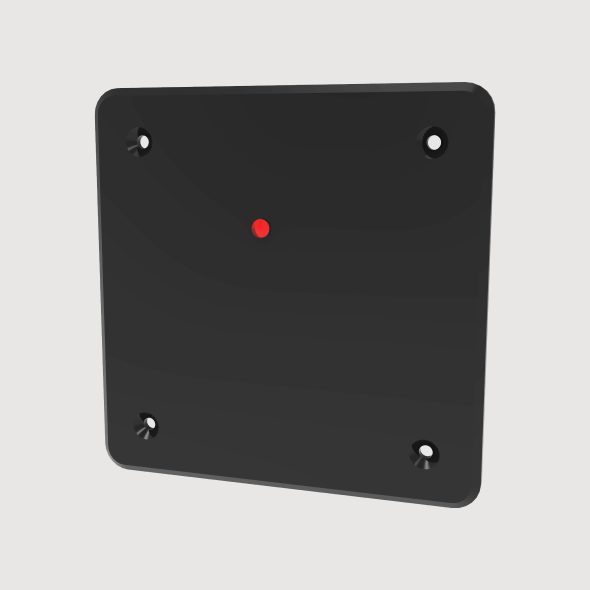

The BT512 is a flush MIFARE® smart card reader made to suit installations that require a very discrete, and tamper resistant solution. It is extremely low profile and offers a very unobtrusive architectural solution while still being able to withstand the harshest of environments.



The BT512 is available in a range of secure options right up to Military grade technology and encryption. It provides a flexible solution through customisation to suit all access control requirements. It can be purchased pre-configured or customised to suit any requirement and is able to integrate seamlessly with existing systems that  facilitate migrating to higher security technology

Enquire
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Features
    Specifications
    Options and Accessories
    Documentation
    Model Comparison
    Compatibility

    Available with MIFARE Classic and DESFire proximity cards for contactless smart card technology. The BQT Solution's suite of MIFARE Classic & DESFire® readers and smart cards, opens the gateway to multiple security applications, including access control, biometric authentication, IT security, e-purse, e-vending, time, and attendance to ensure your security needs are being met.

    Secure encryption

    Working with your current system, the BT512 offers flexible access control, with the option to use Wiegand, OSDP or Encrypted RS485 access data output. The BT512 additional benefits of being cost-effective and easy to wire and deploy across your sites where different levels of encryption are needed for secure access control.

    Robust design

    Its minimalist design ensures the reader is well protect with only the front plate being exposed. The BT512 is able to withstand tampering and maintain integrity during a security threat or incident and will continue to operate and secure access even after being damaged.

    Low power

    The BT512 uses power when needed but goes into a standby mode when not in use. Low power paired with high-security access control makes the BT512 reader a preferred product choice for many industry leaders by offering an eco-friendly and economical, yet secure solution.

    Tamper Monitor

    Security threats aren't always captured on camera and pose a real risk to unauthorised access. We know the peace of mind many organisations need when it comes to alerting them to security threats and the BT512 offers a tamper monitor that will alert the security team if there has been a breach attempt at one of the readers.

    Voltage at Reader 8VDC to 16VDC

    Current Usage Average: 60mA, Peak: 160mA

    Card Read Range 20mm to 40mm (0.8” to 1.6”)

    Operating Temperature -25°C to +65°C (-13°F to +149°F)

    Relative Humidity (% max) 90%, operating noncondensing

    Materials Reader Plate: 6mm Acrylic, Colour Finish: Black

    Feedback Green/Red LED, with external control Buzzer, with external control Tamper detection, optional output

    Credential Options 125kHz (PSK), ISO14443A, MIFARE Classic® 1K/4K, MIFARE Plus® X 2K/4K, MIFARE® DESFire® EV1 4K/8K, MIFARE® DESFire® EV2 4K/8K, MIFARE® DESFire® EV3 4K/8K

    Compliance and Certification FCC, CE, UKCA, RCM, RoHS, IP65

    BT512 Models
    • BT512-1 MIFARE® Classic Reader, CSN only
    • BT512-2 MIFARE® Classic Reader, miPASS2 Diversified Key
    • BT512-3 MIFARE® Classic Reader, Custom Key and Format
    • BT512-4 MIFARE® DESFire EV1 Reader, miPASS3 Diversified Key 3DES
    • BT512-5 MIFARE® DESFire EV2 Reader, miPASS4 Diversified Key AES
    • BT512-6 MIFARE® DESFire EV1, EV2, EV3 Reader, Custom Key and Format

    BT512 Brochure

    Reader Model Comparison

    Name Application Output Protocols Operating Temperature Reader Dimensions Power Usage
    BM680 Sites that are cost
    sensitive yet still require high security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    85mm (3.35”) X 43mm (1.69”)
    X 22mm (0.87”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT930 Existing sites looking to
    upgrade the technology within the same architrave footprint
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    140mm (5.51”) X 47mm
    (1.85”) X 24mm (0.94”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT950 Installations that require
    a robust standard form architrave reader
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 80mA
    (Average), 160mA (Peak)
    BT951 Any site wanting to migrate
    from 125KHz (FSK) to MIFARE security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 120mA
    (Average), 300mA (Peak)
    BT953 Any site wanting to migrate
    from 125KHz (PSK) to MIFARE security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 120mA
    (Average), 300mA (Peak)
    BT815 Sites needing a standard
    form gang box reader
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    90mm (3.54”) X 90mm (3.54”)
    X 20mm (0.79”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT817 Sites requiring dual factor
    authentication or cardless access
    Wiegand, OSDP, RS486 -25°C to +65°C (-13°F to
    +149°F)
    90mm (3.54”) X 90mm (3.54”)
    X 28mm (1.10”)
    8VDC to 16VDC, 90mA
    (Average), 190mA (Peak)
    BT853 Sites requiring dual factor
    authentication or cardless access and on device feedback
    Wiegand, OSDP, RS487 -25°C to +65°C (-13°F to
    +149°F)
    157mm (6.18”) X 97mm
    (3.82”) X
    50mm (1.97”)
    8VDC to 16VDC, 90mA
    (Average), 190mA (Peak)
    BT51X Installations requiring a
    discrete yet secure device, ideal for Hospitals and Prisons
    Wiegand, OSDP, RS488 -25°C to +65°C (-13°F to
    +149°F)
    Variable, to suit 8VDC to 16VDC, 180mA
    (Average), 240mA (Peak)
