BT950

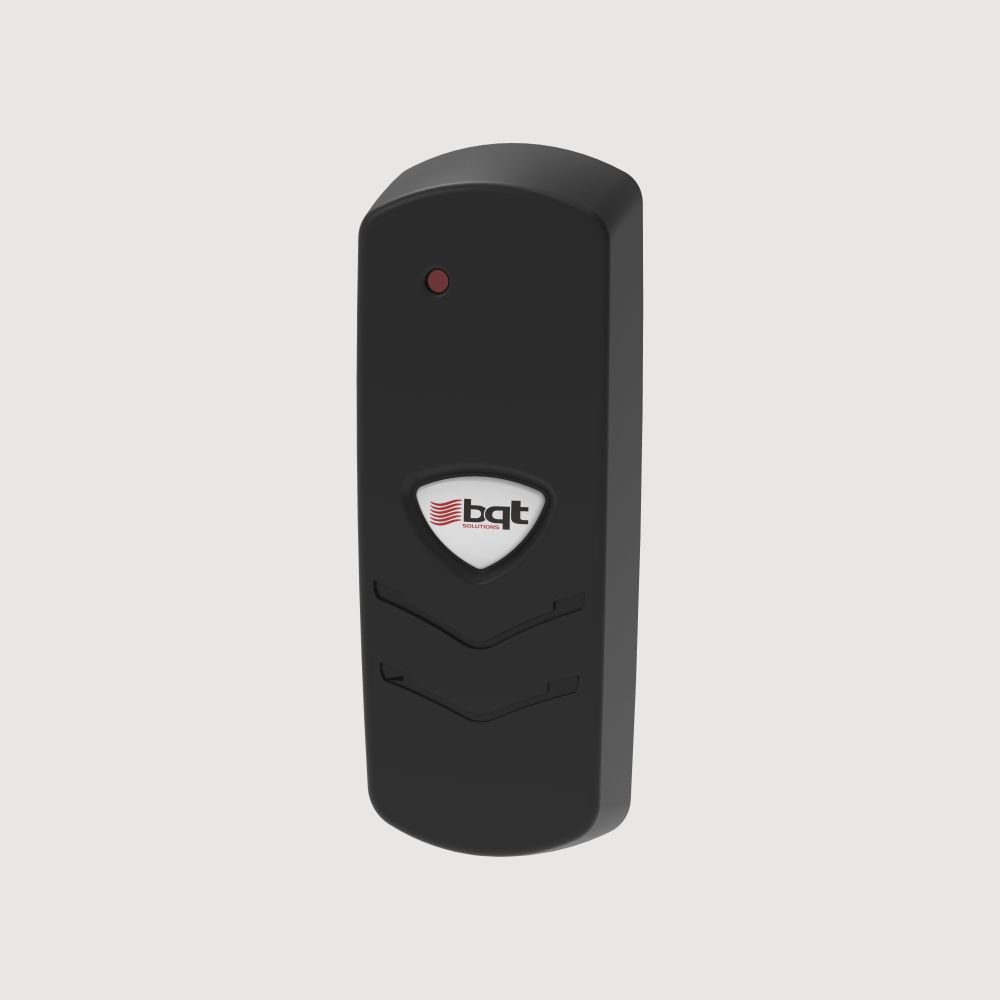

The BT950 reader is stylish as well as functional. Its low profile and slimline shape allow for easy installation on door architraves or mullions where larger readers do not fit. It can be mounted directly on a metal door frame with no adverse effect on the reader's function. In addition, the BT950 is available in a range of secure options right up to military grade technology and encryption. It provides a flexible solution through customisation to suit all access control requirements. This standard footprint mullion MIFARE smart card reader can be purchased pre-configured or customised and will integrate seamlessly with existing systems to facilitate upgrading to higher security technology.

Enquire
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Benefits

    • Its narrow design offers an aesthetically pleasing, non-obstructive reader that takes up less physical space than traditional cases while being engineered with robust materials to provide effective access control in the most challenging environments.



    • Offering pre-configured and customised operations, the BT950 can be set up to accept your custom key and data formats and is designed to work with your pre-existing security configurations.



    • The BT950 offers installation flexibility and integration with many existing access panels and can be customised to suit a proprietary system. When you receive your reader, all you will have to do is connect them in to secure your site with your existing access control system.

    Ideal use case

    New sites locking for a narrow, aesthetically pleasing reader that has a need for high usage contactless access control. The BT950 is available in several technology levels for all security requirements and is the ideal slimline reader for all market sectors.

    Features
    Specifications
    Options and Accessories
    Documentation
    Model Comparison
    Compatibility

    Available with MIFARE Classic and DESFire proximity cards for contactless smart card technology. The BQT Solution's suite of MIFARE Classic & DESFire readers and smart cards, opens the gateway to multiple security applications, including access control, biometric authentication, IT security, e-purse, e-vending, time, and attendance to ensure your security needs are being met.

    Secure encryption

    Working with your current system, the BT950 offers flexible access control, with the option to use Wiegand, OSDP or Encrypted RS485 access data output. The BT950 additional benefits of being cost-effective and easy to wire and deploy across your sites where different levels of encryption are needed for secure access control.

    Robust design

    Its sleek casing offers a robust exterior designed to withstand tampering and maintain integrity during a security threat or incident. Built to withstand common reader threats, including excessive force from a hammer or heavy tool, the BT950 will continue to operate and secure access even after being damaged.

    Tamper Monitor

    Security threats aren't always captured on camera and pose a real risk to unauthorised access. We know the peace of mind many organisations need when it comes to alerting them to security threats and the BT950 offers a tamper monitor that will alert the security team if there has been a breach attempt at one of the readers.

    Low power

    The BT950 uses power when needed but goes into a standby mode when not in use. Low power paired with high-security access control makes the BT950 reader a preferred product choice for many industry leaders by offering an eco-friendly and economical, yet secure solution.

    Voltage at Reader 8VDC to 16VDC

    Current Usage Average: 80mA, Peak: 160mA

    Card Read Range 20mm to 40mm (0.8” to 1.6”)

    Operating Temperature -25°C to +65°C (-13°F to +149°F)

    Relative Humidity (% max) 90%, operating noncondensing

    Reader Dimensions 119mm (4.69”) X 43mm (1.69”) X 23mm (0.91”)

    Materials Reader / Shroud Body: ABS Plastic, Colour Finish: Charcoal

    Feedback Green/Red LED, with external control Buzzer, with external control Tamper detection, optional output

    Credential Options ISO14443A, MIFARE Classic® 1K/4K, MIFARE Plus® X 2K/4K, MIFARE® DESFire® EV1 4K/8K, MIFARE® DESFire® EV2 4K/8K, MIFARE® DESFire® EV3 4K/8K

    Compliance and Certification FCC, CE, UKCA, RCM, RoHS, IP65

    BT950 Models
    • BT950-1 MIFARE® Classic Reader, CSN only
    • BT950-2 MIFARE® Classic Reader, miPASS2 Diversified Key
    • BT950-3 MIFARE® Classic Reader, Custom Key and Format
    • BT950-4 MIFARE® DESFire EV1 Reader, miPASS3 Diversified Key 3DES
    • BT950-5 MIFARE® DESFire EV2 Reader, miPASS4 Diversified Key AES
    • BT950-6 MIFARE® DESFire EV1, EV2, EV3 Reader, Custom Key and Format
    BT950 Accessories
    • B4015G000000 – BT95X Tamper Plate
    • B4104G000000 – BT95X Replacement Shroud

    BT950 Brochure

    BT950 Instructions

    Upgrading Security For The 21st Century

    Reader Model Comparison

    Name Application Output Protocols Operating Temperature Reader Dimensions Power Usage
    BM680 Sites that are cost
    sensitive yet still require high security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    85mm (3.35”) X 43mm (1.69”)
    X 22mm (0.87”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT930 Existing sites looking to
    upgrade the technology within the same architrave footprint
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    140mm (5.51”) X 47mm
    (1.85”) X 24mm (0.94”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT950 Installations that require
    a robust standard form architrave reader
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 80mA
    (Average), 160mA (Peak)
    BT951 Any site wanting to migrate
    from 125KHz (FSK) to MIFARE security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 120mA
    (Average), 300mA (Peak)
    BT953 Any site wanting to migrate
    from 125KHz (PSK) to MIFARE security
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    119mm (4.69”) X 43mm
    (1.69”) X 23mm (0.91”)
    8VDC to 16VDC, 120mA
    (Average), 300mA (Peak)
    BT815 Sites needing a standard
    form gang box reader
    Wiegand, OSDP, RS485 -25°C to +65°C (-13°F to
    +149°F)
    90mm (3.54”) X 90mm (3.54”)
    X 20mm (0.79”)
    8VDC to 16VDC, 60mA
    (Average), 160mA (Peak)
    BT817 Sites requiring dual factor
    authentication or cardless access
    Wiegand, OSDP, RS486 -25°C to +65°C (-13°F to
    +149°F)
    90mm (3.54”) X 90mm (3.54”)
    X 28mm (1.10”)
    8VDC to 16VDC, 90mA
    (Average), 190mA (Peak)
    BT853 Sites requiring dual factor
    authentication or cardless access and on device feedback
    Wiegand, OSDP, RS487 -25°C to +65°C (-13°F to
    +149°F)
    157mm (6.18”) X 97mm
    (3.82”) X
    50mm (1.97”)
    8VDC to 16VDC, 90mA
    (Average), 190mA (Peak)
    BT51X Installations requiring a
    discrete yet secure device, ideal for Hospitals and Prisons
    Wiegand, OSDP, RS488 -25°C to +65°C (-13°F to
    +149°F)
    Variable, to suit 8VDC to 16VDC, 180mA
    (Average), 240mA (Peak)
