Many access control system designs are founded on ease of use at the sacrifice of system integrity. MiPass is the best of both worlds.
Unlike most access control solutions, BQT’s solutions allow you to choose the level of encryption and authentication to meet your security needs with a fully customizable line of BQT Smart Reader products. From our standalone units to fully integrated enterprise solutions, BQT access control systems are designed to provide maximum security, maximum value – and a migration path to meet present and future needs.

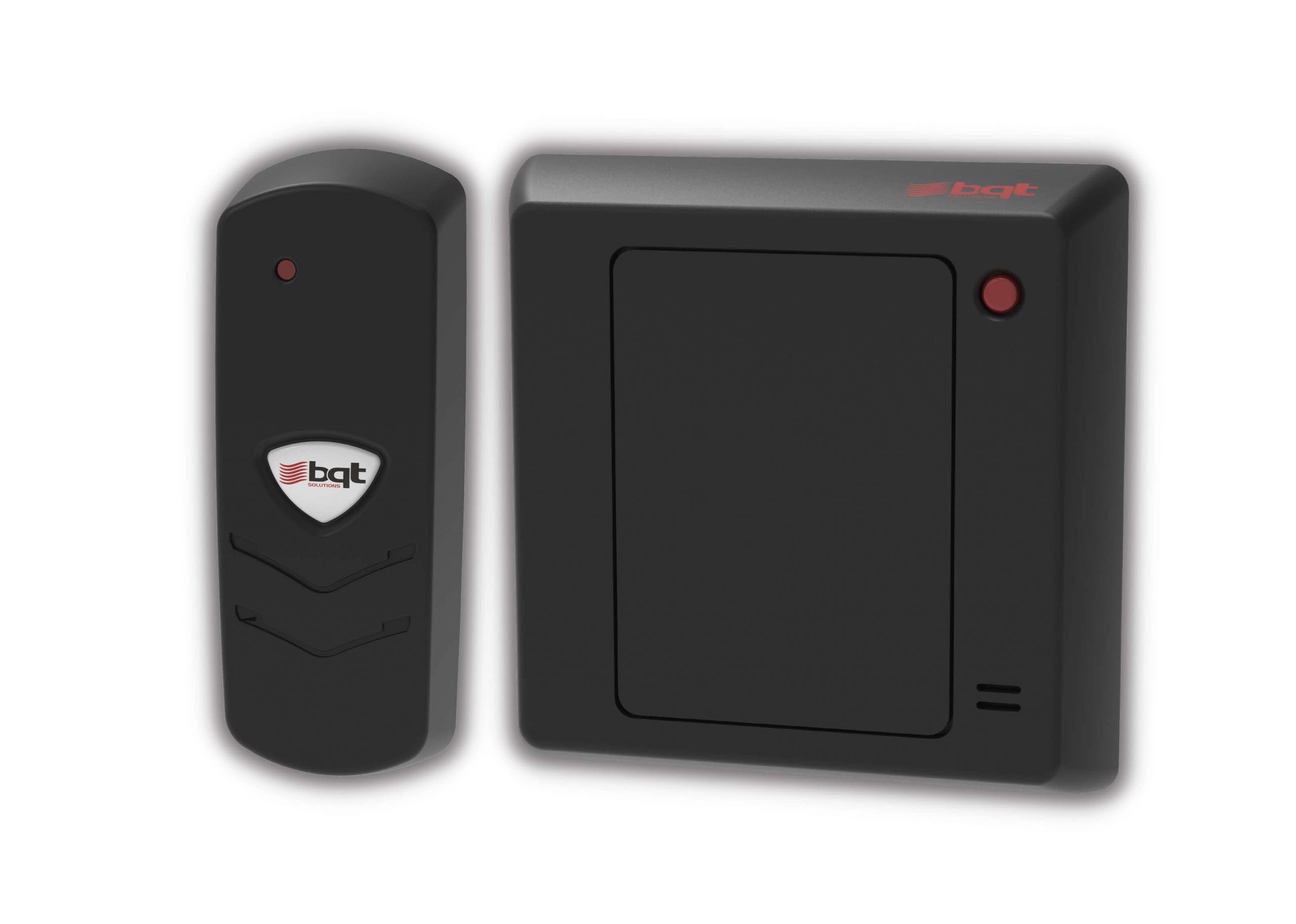

The BQT branded suite of Smart Card readers uses MIFARE® Classic, MIFARE Plus® and MIFARE® DESFire® EV1 contactless smart card technology. Our solutions cover all applications and risk levels from low to high risk applications and multiple factor authentication readers. Our technology is installed at thousands of sites globally and is trusted for some of the most high-risk security applications in the world.
BQT Solutions offers the solutions you want, the way you need them.
| Name | Application | Output Protocols | Operating Temperature | Reader Dimensions | Power Usage |
| BM680 | Sites that are cost sensitive yet still require high security |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
85mm (3.35”) X 43mm (1.69”) X 22mm (0.87”) |
8VDC to 16VDC, 60mA (Average), 160mA (Peak) |
| BT930 | Existing sites looking to upgrade the technology within the same architrave footprint |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
140mm (5.51”) X 47mm (1.85”) X 24mm (0.94”) |
8VDC to 16VDC, 60mA (Average), 160mA (Peak) |
| BT950 | Installations that require a robust standard form architrave reader |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
119mm (4.69”) X 43mm (1.69”) X 23mm (0.91”) |
8VDC to 16VDC, 80mA (Average), 160mA (Peak) |
| BT951 | Any site wanting to migrate from 125KHz (FSK) to MIFARE security |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
119mm (4.69”) X 43mm (1.69”) X 23mm (0.91”) |
8VDC to 16VDC, 120mA (Average), 300mA (Peak) |
| BT953 | Any site wanting to migrate from 125KHz (PSK) to MIFARE security |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
119mm (4.69”) X 43mm (1.69”) X 23mm (0.91”) |
8VDC to 16VDC, 120mA (Average), 300mA (Peak) |
| BT815 | Sites needing a standard form gang box reader |
Wiegand, OSDP, RS485 | -25°C to +65°C (-13°F to +149°F) |
90mm (3.54”) X 90mm (3.54”) X 20mm (0.79”) |
8VDC to 16VDC, 60mA (Average), 160mA (Peak) |
| BT817 | Sites requiring dual factor authentication or cardless access |
Wiegand, OSDP, RS486 | -25°C to +65°C (-13°F to +149°F) |
90mm (3.54”) X 90mm (3.54”) X 28mm (1.10”) |
8VDC to 16VDC, 90mA (Average), 190mA (Peak) |
| BT853 | Sites requiring dual factor authentication or cardless access and on device feedback |
Wiegand, OSDP, RS487 | -25°C to +65°C (-13°F to +149°F) |
157mm (6.18”) X 97mm (3.82”) X 50mm (1.97”) |
8VDC to 16VDC, 90mA (Average), 190mA (Peak) |
| BT51X | Installations requiring a discrete yet secure device, ideal for Hospitals and Prisons |
Wiegand, OSDP, RS488 | -25°C to +65°C (-13°F to +149°F) |
Variable, to suit | 8VDC to 16VDC, 180mA (Average), 240mA (Peak) |
