YD38L

The YD38L is the world's first dual action, self-latching, electronic deadbolting door lock. Designed to reduce door misalignment and rattle problems, the YD38L first 'captures' the door with a magnetic latch, then secures the door with its deadbolting lock pin. This dual action helps the lock align correctly with the strike plate allowing for consistent locking even on swing through doors. Hidden in door frames or surfaces mounted to glass doors with the aid of accessories, this unique lock offers something new to the market.

Because of its larger size, the YD38L is primarily designed for securing commercial doors, and with the magnetic latch addition, this innovative lock offers a perfect solution for secure, reliable operation.

Enquire
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Benefits

    • A premier solenoid drop bolt with all the features expected from a top-of-the-line product and a unique integrated magnetic latch designed to help correct door alignment issues and eliminate door rattle.



    • Highest level of security offered from the BQT solenoid range with a holding force over 20,000N.



    • Reliable and durable, the YD38L has been tested and approved to offer continuous locking for over 1,000,000 cycles making it well suited for high security, high traffic environments.



    • Offering feedback to the control panel of the door and bolt positions is a standard feature of the YD38L. Monitoring the position of the door and whether the bolt pin is extended or retracted provides vital information needed to ensure a site is safe and secure.

    Ideal use case

    Ideal for swing through doors that have small door alignment or door rattle issues and larger high traffic flow doors requiring a reliable, high security solution. Used across all market sectors around the globe or over 25 years.

    Features
    Specifications
    Options and Accessories
    Documentation
    Model Comparison
    Alignment

    The YD38L has a built-in magnet latch, which helps ensure the correct positioning of the lock and strikes every time. Perfect for swing through doors, rattling doors, or misaligned doors.

    High Security

    With a stainless-steel bolt pin, the YD38L has a holding force in excess of 20,000N. In addition, onboard control provides auto-relock and timed relock for added security.

    Reliability

    The durable design of the Solenoid Drop bolt range has made it one of the most reliable electromechanical locks in the world, rated at 1,000,000 cycles.

    Complete Monitoring

    The YD38L can output both the bolt position and the door position as monitor signals. Monitoring the position of the door and whether the lock is open or closed, the YD38L will connect to your access control system to display the status of the lock for security.

    Low Current Consumption

    The YD38L will draw as little as 230mA holding current at 12VDC by utilising the built-in current reduction circuitry. Low current paired with high-security access control makes the YD38L a preferred product choice for many industry leaders.

    Integrated Access Control

    With factory-set fail safe and fail secure variants and multiple attempts to lock or unlock, the YD38L is ready for a wide range of application requirements. It can be integrated easily with access control or alarm systems.

    Versatile Installation

    The YD38L can be morticed flush into both the side, or top of many door frames. The lock is supplied with a matching strike plate as standard but additional items are available in the form of a housing and dress plate. These products allow the lock to be surface mounted when mortice installation isn't a preferred, or viable option. The housing and dress plates are supplied with self-adhesive tape for instant application to glass doors and door frames.

    Door Gap 6mm maximum

    Static Strength 20,000 newtons (2,000Kg)

    Endurance Cycle tested to 1,000,000 operations

    Bolt Pin Ø14.2, 14mm extension, Ø17.5mm receiver

    Voltage at Lock 12-24VDC ±10%

    Current Usage Holding: 150mA@12V,90mA@24VMaximum: 1.5A@12V, 1.4A@24V

    Monitor Switch Ratings 24VDC, 0.5A

    Materials Lock / Strike Plate: Stainless Steel 304, Bolt Pin: Stainless Steel 304

    Compliance and Certification CE Compliant, RoHS 2 Compliant FCC Part 15 Compliant

    YD38L Models

    The YD38L locks are offered in either fail safe or fail secure configuration and are supplied with a long strike plate and mounting screws.

    • YNL181G – YD38 Fail Safe Lock and Strike
    • YNL182G – YD38 Fail Secure Lock and Strike
    YD38 Accessories

    For installations requiring surface mounting of the lock, a housing and dress plate are available. Both the housing and dress plates are supplied with self-adhesive 3M® tape for instant application to glass doors and door frames.

    • YNL174J – Housing with tape
    • YNL176J – Dress Plate with tape
    • YNL183G – Long Strike Plate

    YD38L Brochure

    YD38L Instructions

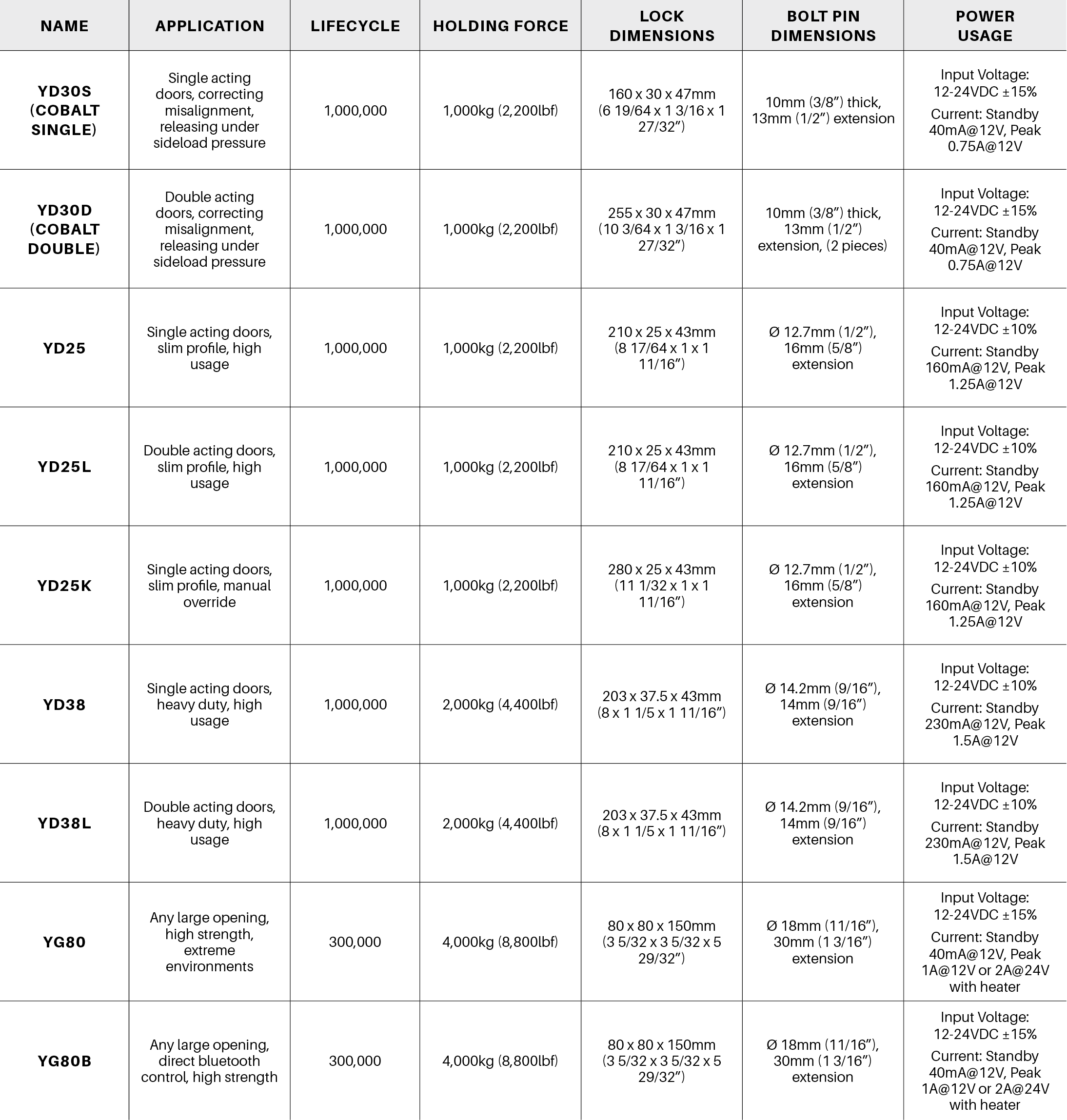

    Lock Model Comparison

    Name  Application  Lifecycle  Holding Gorce  Lock Dimentions Bolt Pin Dimnetions  Power Usage
    YD30
    ( Cobalt)
    Securung misaligned  Double acting doors, relasing under
    sideload pressure
    300,000 1000kg 255x30x51 10mm thick, 13mm extension
    (2 Pieces)
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A
    YD30M
    ( Cobalt Mini)
    Securung misaligned  single acting doors, relasing under
    sideload pressure
    300,000 1000kg 160x30x51 10mm thick, 13mm extension Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A
    YD25 Single Acting Doors 1,000,000 1000kg 210x25x42 12.7mm,
    16mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD25L Double Acting Doors 1,000,000 1000kg 210x25x43 12.7mm,
    16mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD25K Single Acting Doors 1,000,000 1000kg 210x25x44 12.7mm,
    16mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 130mA - 80mA
    Current (Peak) 1A - 0.5A
    YD38 Single Acting Doors 1,000,000 2000kg 203x37.5x44 14.2mm,
    14mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 150mA - 90mA
    Current (Peak) 1A - 0.5A
    YD38L Single Acting Doors 1,000,000 2000kg 203x37.5x45 14.2mm,
    14mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 150mA - 90mA
    Current (Peak) 1A - 0.5A
    YG80 Securing all large openings,
    High strength, extream heat and cold enviroments
    300000 5000kg 80x80x150 18mm,
    30mm extension
    Input Voltage : 12-24VDC ±
    15% Current (Stand By) 40mA - 30mA
    Current (Peak) 1A - 0.5A - 2A with heater
