The YG80B is a unique electronic locking solution designed to secure any overhead door, gate or large opening. Able to be integrated into an access control system or operate completely stand alone with inbuilt Bluetooth control. Made for any climate and robust enough to withstand all environments, the YG80B can be utilized in places most electronic locks can’t and provides unparalleled security and convenience.


    Enquire now
    (Submit your details and we’ll be intouch)






    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


    • Unmatched security with a holding force of up to 39,000N (8,800 lbf) and on-board monitors to provide status feedback.


    • Bluetooth communication enables effortless control of the YG80B lock by simply downloading the accompanying app, offering unparalleled convenience.


    • Achieving an IP67 rating and having a built in heater ensures that the YG80B can be used in the most extreme environments.


    • Flexibility with mounting and a multitude of control options make the YG80B ideally suited to solve even the most challenging installations.

    Ideal use case

    Any large opening that demands the highest security, is exposed to the most extreme weather conditions, and requires access control operation including chain of custody. Commonly seen on overhead doors, gates and trucks and ideal for standalone access by utilizing the built in Bluetooth control. Useful in most market verticals.


    Options and Accessories

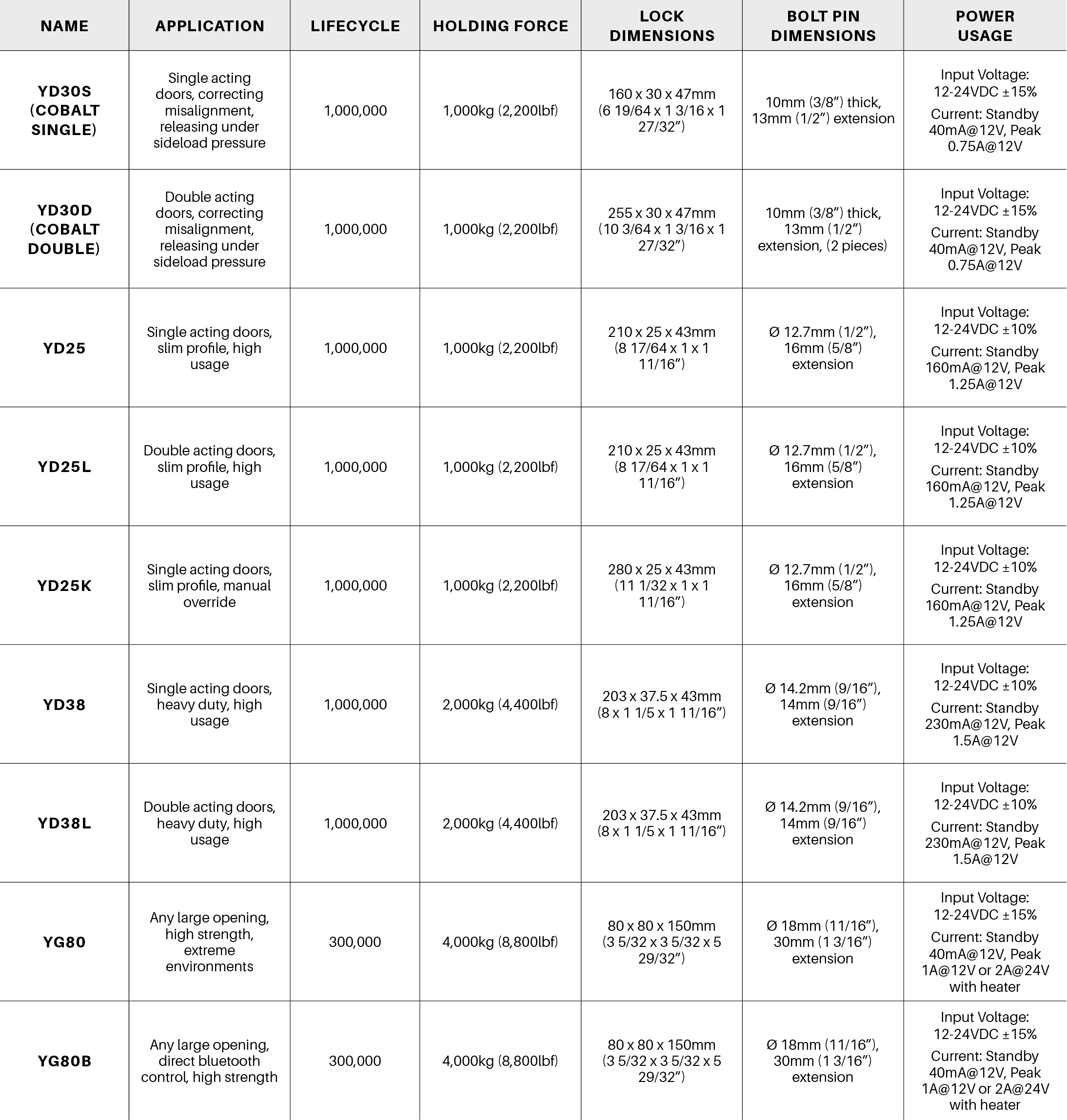

    Model Comparison
    High Security

    With an 18mm diameter stainless steel bolt pin and reinforced strike, the YG80B has a tested holding force that exceeds the highest level of UL 1034, Burglary Resistant Electric Locking. The locks mounting bolts are concealed under the cover which is monitored for tamper detection.

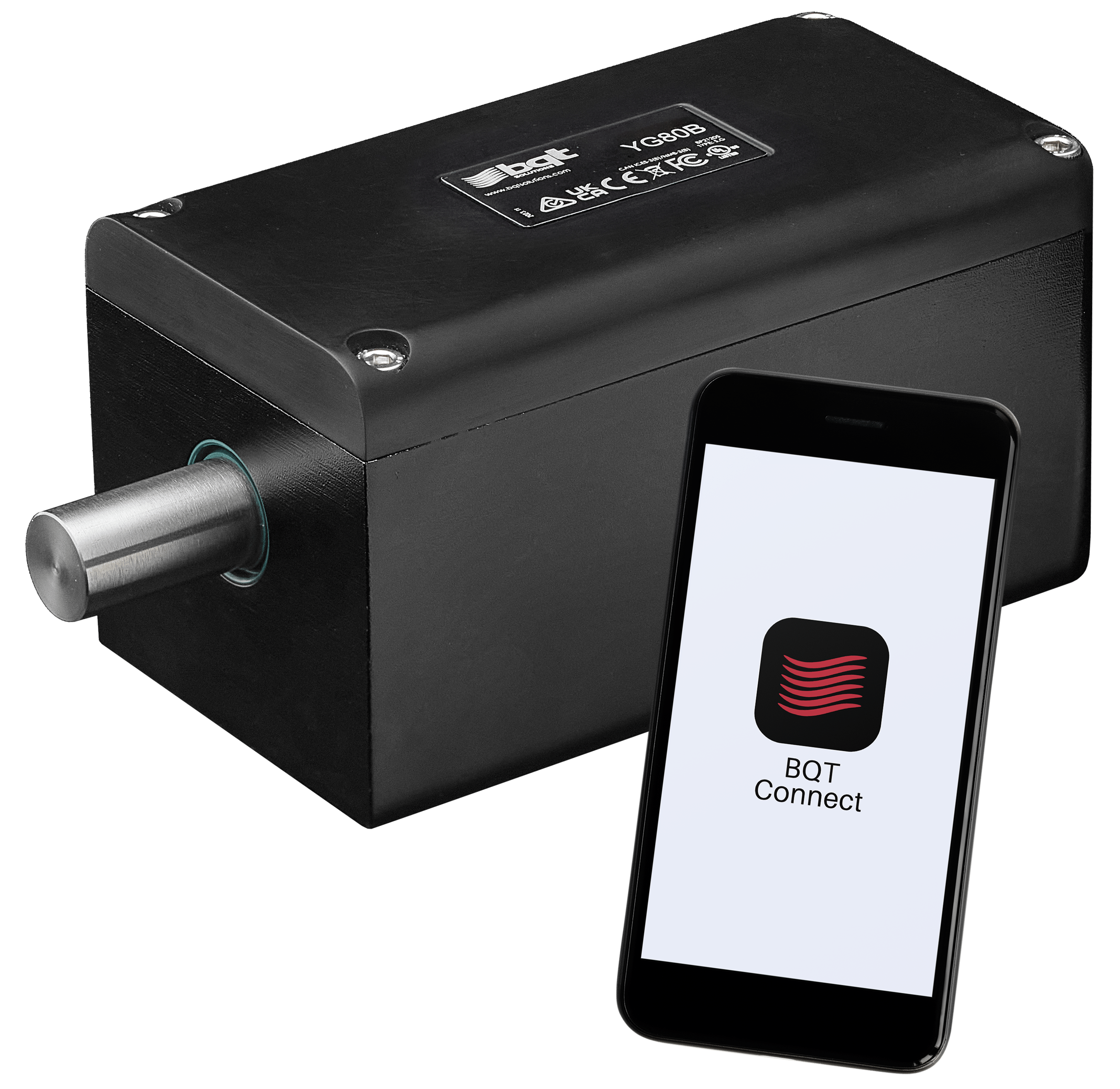

    Bluetooth Control

    Downloading the YG80B app then pairing the phone with the lock, gives the owner direct control and the simplest of set ups. The owner can then share ‘eKeys’ with others eliminating the need for a physical access control system if desired.


    The YG80B has been designed from the ground up with weatherproofing as a critical feature. With an IP67 certified design, corrosion and UV resistant body and strike material, and a built-in heater for continued functionality in sub-zero climates, the YG80B can handle any environment.

    Low Current Consumption

    With the heater disabled the YG80B will draw as little as 40mA in standby and 1A in operation at 12VDC. The low power usage of the YG80B makes it a preferred product for many locations offering a unique balance of high security while still being eco-friendly and economical.

    Versatile Installation

    The symmetrical design means the YG80B can be installed both horizontally and vertically in indoor and outdoor environments. In addition, the included three metre plug in cable ensures easy connection for the power, control and monitoring functions.

    Integrated Access Control

    With user-selectable fail safe / fail secure modes, three userselectable control methods, multiple attempts to lock or unlock, and built in Bluetooth, the YG80B can be connected and controlled in numerous ways giving the installer and user unrestricted flexibility.

    Complete Monitoring

    The YG80B has a range of output signals - bolt locked and unlocked position, door position, and tamper detection. The tamper will also alert to the owners phone via Bluetooth if enabled. Monitoring the position of the door and whether the lock is open or closed provides complete confidence of the facilities security in addition to potential integrations into other devices.


    Tested for endurance for over 300,000 cycles, the YG80B offers security in medium volume traffic environments.


    The YG80B has been fully certified for global use including being tested to UL 294, UL 1034, FCC and CE. Additionally, numerous environmental standards were conducted with heat, cold, and corrosion resistance all determined.

    Door Gap: 15mm (5/8 inch) maximum

    Static Strength: 39,000N (8,800 lbf)

    Dynamic Strength: 200 joules

    Endurance: Cycle tested to 300,000 operations

    Bolt Pin: Ø18mm (11/16 inch), 30mm (1 3/16 inch) extension, Ø28mm (1 1/8 inch) receiver

    Locking / Unlocking Time: 4.5 seconds (typical)

    Voltage at Lock: 12-24VDC ±15%

    Current Usage Standby: 40mA@12VDC, 30mA@24VDC, Maximum: 1A@12VDC, 2A@24VDC with heater on

    Monitor Switch Ratings: 24VDC max, 250mA max

    Materials Bolt Pin: Stainless Steel SS304 Lock Body / Strike: Aluminum A383 Lid: Glass Fiber Reinforced, UV Stabilised Polypropylene

    Compliance and Certification: CE Compliant, RoHS 2 Compliant, FCC Part 15 / IC Compliant, RCM Compliant, UL 294 and UL 1034 certified

    YG80B Models

    The YG80B lock is user fail safe / secure configurable and is supplied with a matching strike plate.

    • YNL310A - YG80B Lock and Strike
    YG80B Accessories

    The lock is designed to be mounted vertically or horizontally, indoors or out. There are not standard mounting accessories however please contact BQT Solutions if you have specific installation requirements.

    • YNL303A - YG80 Strike
    • YNL309A - YG80B Wire loom - 3m

    YG80B Brochure

    BQT Connect - Admin User Manual

    YG80B Instructions

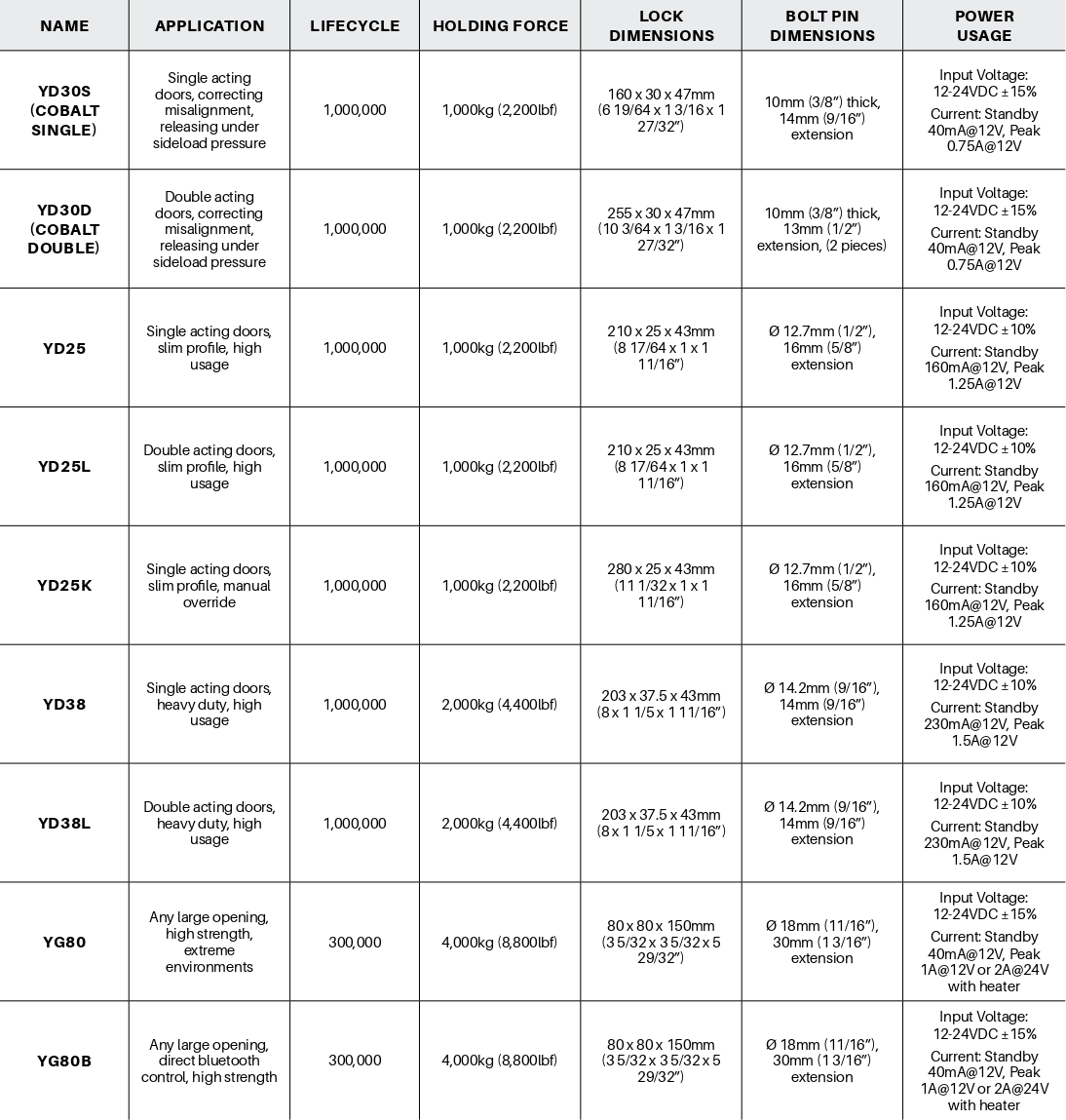

    Lock Model Comparison
