BioXK

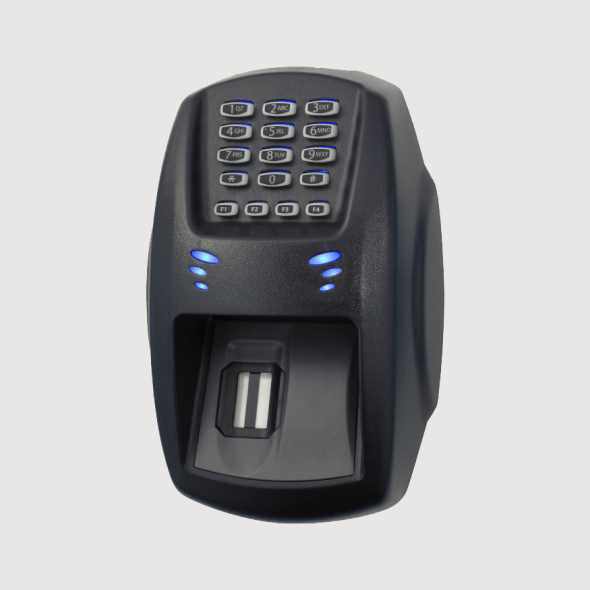

The BioXK is a three-factor fingerprint biometric and MIFARE® smart card reader able to integrate seamlessly with existing systems. It can be configured as 'template and pin on card' or for complete control, managed with miPASS Access software.

The BioXK is available in a range of secure options right up to Military grade technology and encryption that provides a flexible solution through customisation to suit all access control requirements. Engineered to offer ultimate security by combining leading-edge fingerprint scanning with secure encryption, the BioXK offers biometric access control to high-security areas.

Enquire
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Benefits

    • Three factor authentication for a higher level of access control security, using a keypad for a pin, a fingerprint scanner for biometric security alongside the MIFARE® Classic & DESFire® 13.56MHz readers and smart cards.



    • Offering pre-configured and customised operations, the BIO XK can be set up to accept your custom key, data formats and is designed to work with your pre-existing security configurations.



    • The BioXK offers installation flexibility and integration with many existing access panels and can be customised to suit a proprietary system. When you receive your reader, all you will have to do is connect them in to secure your site with your existing access control system.



    Ideal use case

    Highly security conscious sites requiring additional layers of authentication to ensure only the correct people are granted access. Often used in Military or sensitive commercial locations, the BioXK is the preferred solution where true access control is needed.

    Features
    Specifications
    Options and Accessories
    Documentation
    Model Comparison
    Compatibility

    Available with MIFARE Classic and DESFire proximity cards for contactless smart card technology. The BQT Solution's suite of MIFARE Classic & DESFire® readers and smart cards, opens the gateway to multiple security applications, including access control, biometric authentication, IT security, e-purse, e-vending, time, and attendance to ensure your security needs are being met.

    Secure encryption

    Working with your current system, the BioX offers flexible access control, with the option to use Wiegand, OSDP or Encrypted RS485 access data output. The BIO XK has additional benefits of being cost-effective and easy to wire and deploy across your sites where different levels of encryption are needed for secure access control.

    Robust design

    The solid nature of the BioX ensures is can withstand tampering and maintain integrity during a security threat or incident. It is designed to withstand common reader threats, including excessive force from a hammer or heavy tool, and will continue to operate and secure access even after being damaged.

    Encrypted Template

    Encrypted securely onto the card, fingerprints are stored as an encrypted template file, unable to be duplicated or used anywhere else, and is impossible to convert back into a fingerprint image. The file is used to confirm the user's identity but is never stored on the reader or any backend database. Instead, the data is only stored on the user's access card, meaning only the user has physical control over the template.

    BQT Solutions understands there are many concerns around the privacy and security of a user's biological data. It is of utmost importance to BQT to ensure data is not compromised. Therefore, BQT Solutions does not collect any data, only transforming fingerprints templates into secure encrypted data files for the sole purpose of access control with assigned BQT readers.

    Voltage at Reader 8VDC to 16VDC

    Current Usage Average: 280mA, Peak: 350mA

    Card Read Range 20mm to 40mm (0.8” to 1.6”)

    Operating Temperature -10°C to +50°C (+14°F to +122°F)

    Relative Humidity (% max) 90%, operating noncondensing

    Reader Dimensions 190mm (7.48”) X 120mm (4.72”) X 60mm (2.36”)

    Materials Reader / Shroud Body: ABS Plastic, Colour Finish: Charcoal

    Feedback Green/Red/Blue LED, with external control Buzzer, with external control Tamper detection, optional output

    Sensor Optical Fingerprint sensor

    Credential Options ISO14443A, MIFARE Classic® 1K/4K, MIFARE Plus® X 2K/4K, MIFARE® DESFire® EV1 4K/8K, MIFARE® DESFire® EV2 4K/8K, MIFARE® DESFire® EV3 4K/8K

    Compliance and Certification FCC, CE, UKCA, RCM, RoHS, IP65

    BIOXK Models
    • BioXK-1 MIFARE® Classic Reader, CSN only
    • BioXK-2 MIFARE® Classic Reader, miPASS2 Diversified Key
    • BioXK-3 MIFARE® Classic Reader, Custom Key and Format
    • BioXK-4 MIFARE® DESFire EV1 Reader, miPASS3 Diversified Key 3DES
    • BioXK-5 MIFARE® DESFire EV2 Reader, miPASS4 Diversified Key AES
    • BioXK-6 MIFARE® DESFire EV1, EV2, EV3 Reader, Custom Key and Format

    BioXK Brochure

    BioX-BioXK Instructions

    Biometric Authentication For High Security

    High Security For Headquarters

    Biometric Model Comparison

    Model BioX BioXK Iris ID -
    iCAM7000
    Credential Compatibility MIFARE Classic, MIFARE DESFire EV1/EV2 MIFARE Classic, MIFARE DESFire EV1/EV2 MIFARE Classic, MIFARE DESFire EV1/EV2
    Mounting Mounting bracket Mounting bracket Flush or Recess Mounting
    Connector Type Flying lead Flying lead Power & ethernet ports (cable supplied)
    Dimension 190mm (7.48”) X 120mm (4.72”)
    X 60mm (2.36”)
    190mm (7.48”) X 120mm (4.72”)
    X 60mm (2.36”)
    178mm (7.01” ) X 211mm (8.31”)                   X 64mm (2.52”)
    Colour Charcoal Charcoal Black or Titanium
    Operating Voltage Range 8VDC to 16VDC 8VDC to 16VDC 24VDC @ 1A or 12VDC @2A from power over ethernet (PoE)
    Current Draw (Max)  350mA 380mA 12~24 VDC, 2.0 Amps @ 12 VDC / 24W
    Operating Temperature Range -10°C to +50°C (+14°F to +122°F) -10°C to +50°C (+14°F to +122°F) 0°C to 45°C (32°F to 113°F)
    IP Rating IP65 IP65 IPXX
    Biometric Sensor Type Optical (Morpho) Fingerprint  Optical (Morpho)
    Fingerprint
    Face camera CMOS - 5MP IRIS
    Fake Finger Detection Yes Yes NA
    Authentication Modes Template on Card
    (Card + Finger (1:1), Finger Only (1:N) available)
    Template on Card
    Template and PIN on Card
    (Finger Only (1:N), Card + Finger (1:1), Card + Finger + PIN (1:1)
    available)
    Template on Card
    Template and PIN on Card
    (Iris Only (1:N), Card +iris (1:1), Card + iris + PIN (1:1) available)
    Enrolment Integrated Reader/Enrolment Device Integrated Reader/Enrolment Device Separate (but interchangable) enrolment & identification
    modes
    Controller Communication Wiegand
    OSDP
    Encrypted RS485
    Wiegand
    OSDP
    Encrypted RS485
    Ethernet (LAN, WAN),                              RS232
    RS485
    RS422
    Input Control Buzzer/LED external control Buzzer/LED external control Customizable, color LCD touch screen
