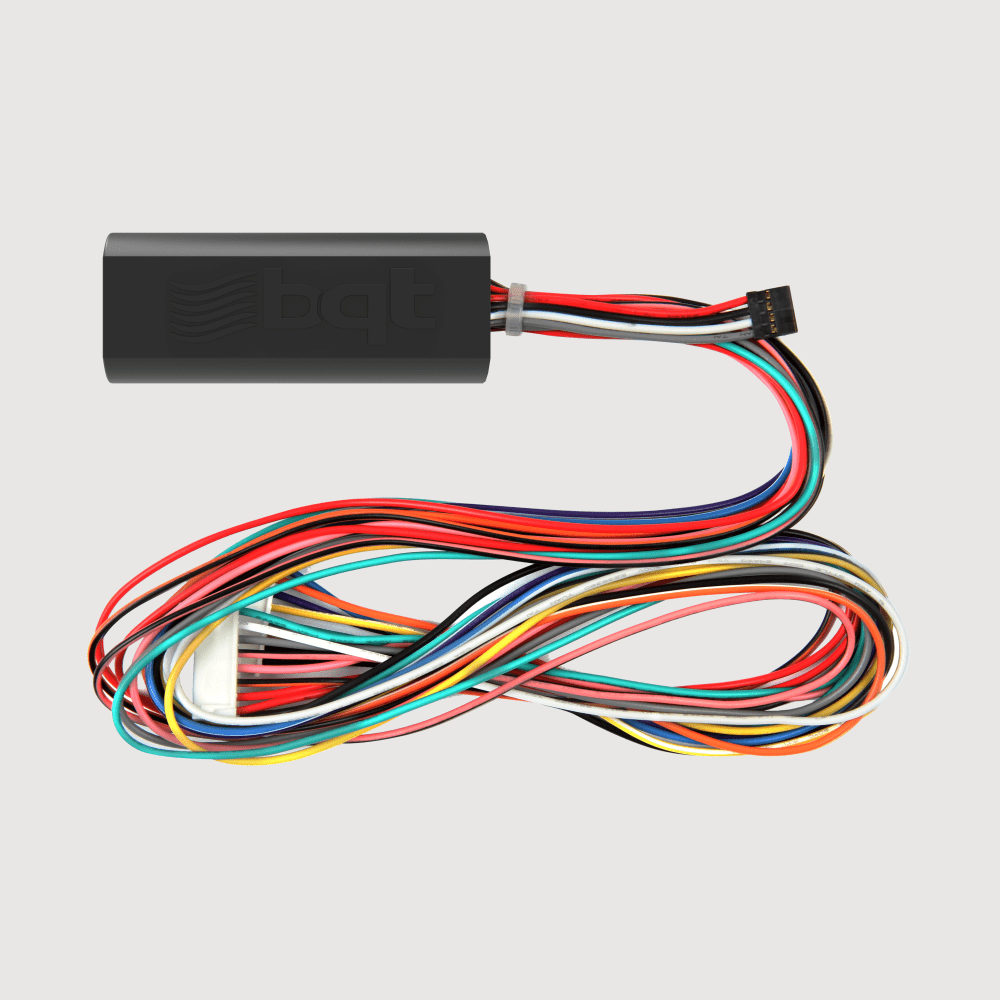

HIGH SECURITY MODULE (HSM)

Designed to work with all insecure Wiegand panels, the HSM solution will provide encrypted communication signals between HSM-ready BQT readers and the panel. By using this product, existing Wiegand panels can be left in place while readers are upgraded to output a secure signal, that the HSM then converts to Weigand securely at the panel.



This ensures the information path cannot be compromised whether the reader is wall enclosed or at a remote site such as an access gate. This encrypted communication can travel much further than Wiegand communications.

Enquire
x

    Enquire now
    (Submit your details and we’ll be intouch)

    Subject

    Name

    Email

    Phone

    Region

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Benefits

    • Innovation in encryption, the HSM utilises the industry standard in high security. The HSM looks to offer an option to resecure your access control systems without having to upgrade your panels or current system designs.



    • The HSM communication protocol of RS485 allows for long cable runs, much longer than Weigand so not only are the messages secure, but they can also be transmitted much further without any data loss.



    • The small size and nature of the HSM means it is easy to add into an access control system without taking up any significant space.



    Ideal use case

    Used across all market sectors to conveniently upgrade insecure sites without the need to replace panels.

    Specifications
    Documentation
    High Security

    By utilising a 128-bit AES encryption between an HSM-ready BQT reader and the HSM, this type of high security communication is an industry standard across all sectors. This level of encryption used is still commonly used at government and military level.

    Transmission

    The connection between a BQT reader and the HSM is via RS485 communication, thus allowing the cable run to be up to 1.2 km (4,000 ft) in length without data loss, providing greater flexibility and reducing installation costs..

    Compatibility

    The HSM will decrypt to a Wiegand format for compatibility with most old and new access control panels. This provides a security upgrade pathway without the need to change the control panel.

    Flexible Installation

    When upgrading an existing system, only the readers need to be replaced. This can occur all at once, or slowly over time to flatten project costs and also minimise or avoid site downtime. The project may only require the most vulnerable readers get replaced with HSM-ready readers such as readers at external doors, while internal readers can be left as Wiegand where the lines are less likely to be attacked.
