The YD30S, known as the Cobalt Single, is a revolutionary low voltage motor-driven door lock for 90º doors. It has been designed to secure single-acting doors and addresses the two biggest issues for electronic locking; 1) the ability to align a misaligned door and 2) the ability to release when requested, even with excessive load on the door.
The Cobalt Single is typically used in commercial doors and controlled by access control systems. This gives the user the ability to control access in and around a facility and provide traffic reports when desired. In addition, the Cobalt Single can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone access system.
World-leading in innovation and engineering, the unique design of the Cobalt Single uses a collapsing mechanism that is deadbolted when locked but will unlock when requested, even with 6,000N (1350 lbf) of sideload force on the door.
The pivot action of the Cobalt Single bolt pin will ‘grab’ the strike plate and pull the door into position for a misalignment up to 8mm (5/16").
With a 10mm (3/8") thick stainless steel bolt pin, the Cobalt Single has a holding force in excess of 10,000N (2250 lbf). In addition, onboard control provides auto relock for added security.
A Cobalt lock will draw as little as 40mA in standby and only require a 0.75A,12VDC power supply. Low current paired with high-security access control makes the YD30S a preferred product choice for many industry leaders. Offering an eco-friendly and economical solution, the Cobalt Single utilise a low power mode when in standby mode.
With user-selectable fail-safe and fail-secure modes, and multiple attempts to lock or unlock, the YD30S is ready for a wide range of application requirements. It can be integrated easily with access control or alarm systems.
The Cobalt Single can be morticed flush into both the side or top of many door frames, and fitting tabs are available to make installation quicker. The lock is supplied with a matching strike plate as standard, but additional items are available in the form of a housing and dress plate. These products allow the lock to be surface mounted when mortice installation isn’t a preferred or viable option. The housing and dress plates are supplied with self-adhesive tape for instant application to glass doors and door frames.
Tested for endurance for over 1,000,000 cycles, the Cobalt Single offers durability and safety in high-volume traffic environments.
Holding the EN14846 certification, the Cobalt Single has been tested and awarded the European Standard for strength, security, durability, and function of electrical and electronic components for all types of electromechanically operated locks and striking plates used on doors, window doors and entrance doors in buildings.
The Cobalt Single has been fire tested and approved to ensure our locks won’t compromise a fire door’s integrity or effectiveness.
Door Gap: 6mm maximum
Static Strength: 10,000 newtons (2250 lbf)
Sideload (release on request): 6,000 newtons (1350 lbf)
Endurance: Cycle tested to 1,000,000 operations
Bolt Pin: 10mm (3/8") thick, 13mm (1/2") extension
Alignment: 8mm (5/16") misalignment correction
Voltage at Lock: 12-24VDC ±15%
Initial Current Draw: 750mA@12V, 400mA@24V
Standby Current: 40mA@12V, 25mA@24V
Monitor Switch Ratings: 30VDC max, 100mA max
Lock / Strike Plate Material: Stainless Steel 304
Bolt Pin Material: Stainless Steel 17-4PH
Compliance and Certification: CE Compliant, RoHS 2 Compliant, FCC Part 15 / IC Compliant, RCM Compliant, UL Listed, EN 14846:2008 Certified, Suitable for use on fire resistant door sets
The Cobalt Single lock is user fail safe / secure configurable and is supplied with a matching strike plate and mounting screws.
For installations requiring surface mounting of the lock, a housing and dress plate are available. Both the housing and dress plates are supplied with self-adhesive 3M® tape for instant application to glass doors and door frames.

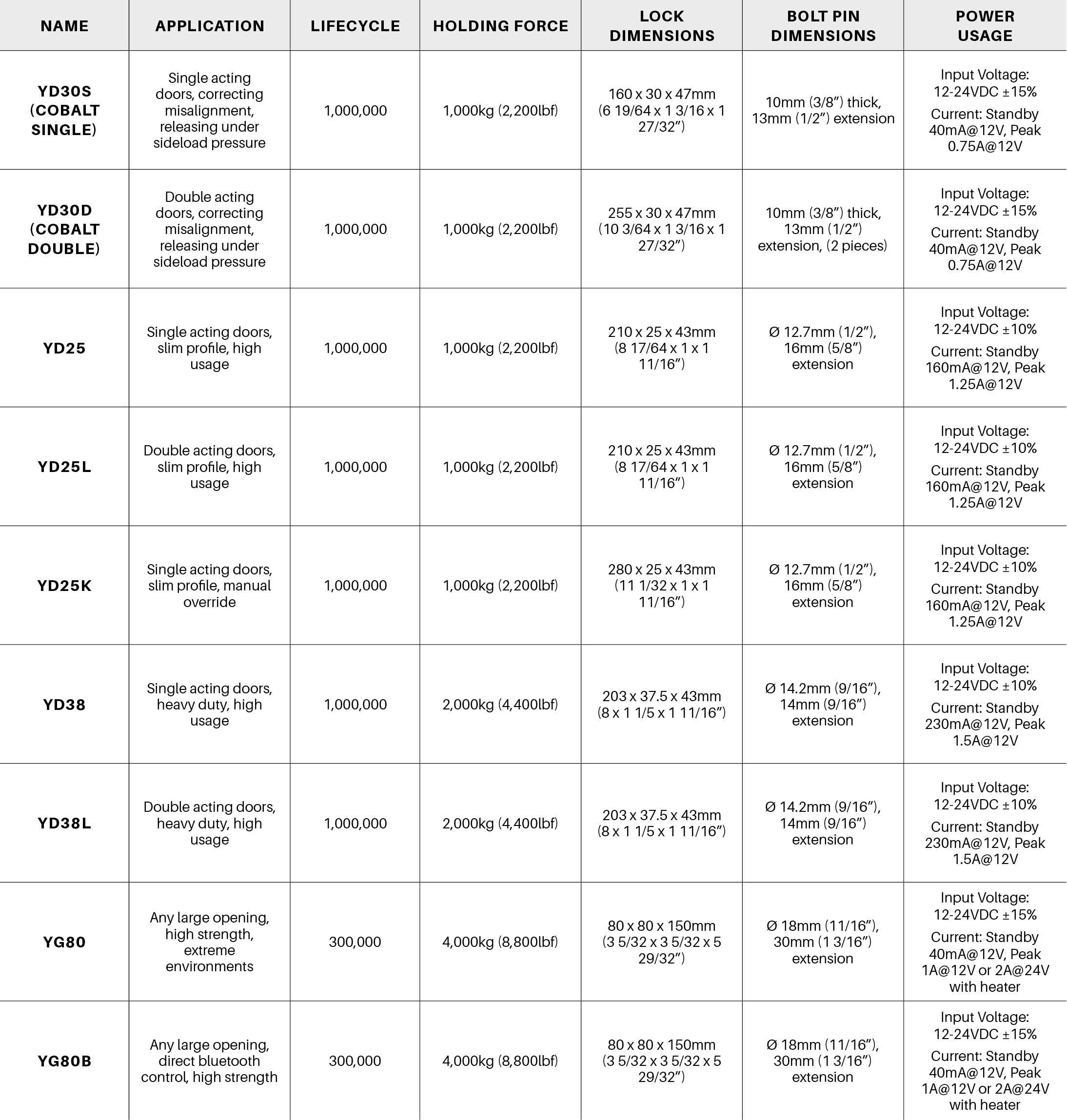

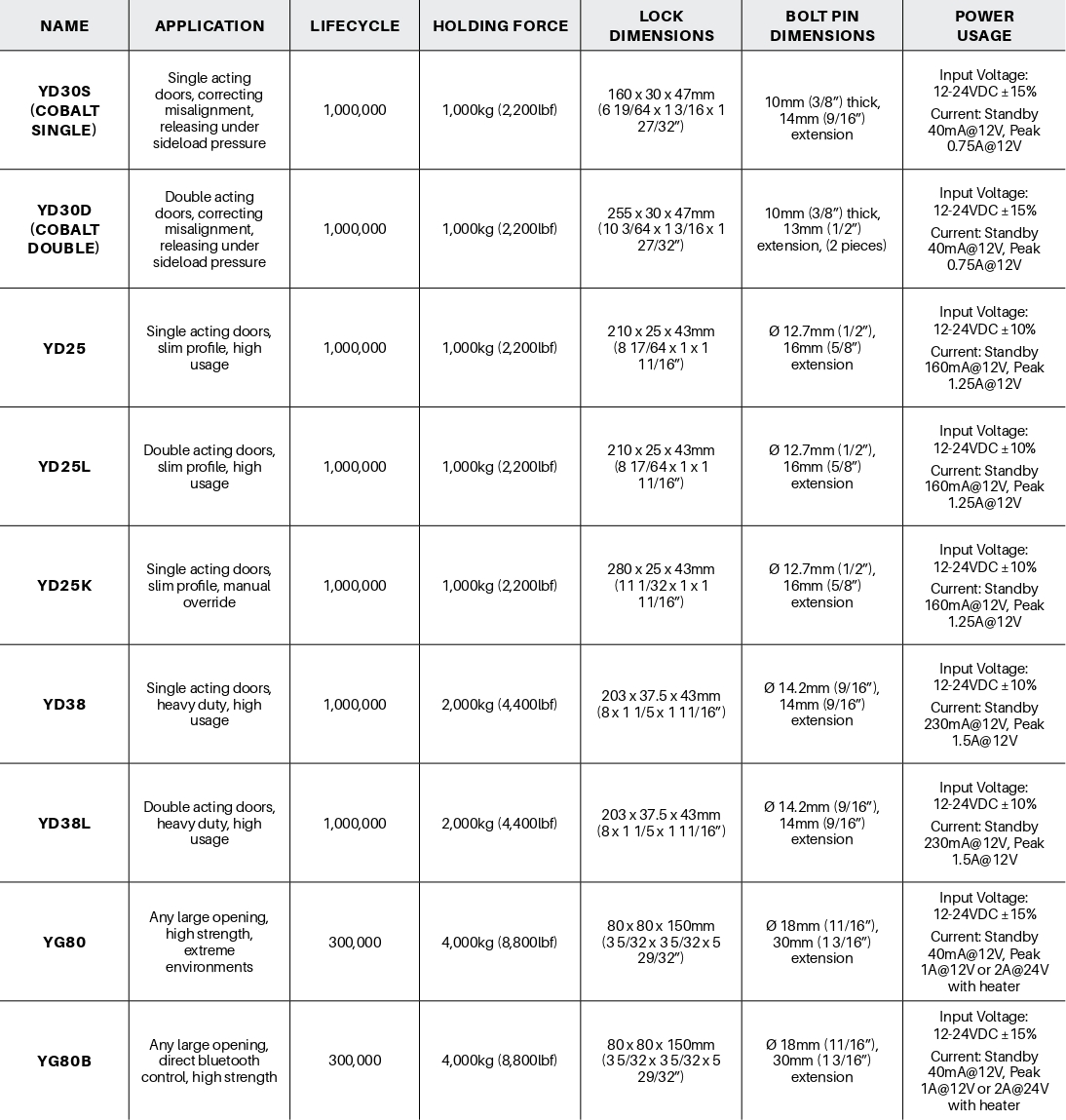

| Name | Application | Lifecycle | Holding Gorce | Lock Dimensions | Bolt Pin Dimensions | Power Usage |
| YD30D (Cobalt Double) | Securing misaligned Double acting doors, releasing under sideload pressure | 1,000,000 | 1000kg | 255x30x51 | 10mm thick, 13mm extension (2 Pieces) | Input Voltage:12-24VDC ± 15% Current (Stand By) 40mA - 25mA Current (Peak) 0.75A - 0.4A |
| YD30S (Cobalt Single) | Securing misaligned single acting doors, releasing under sideload pressure | 1,000,000 | 1000kg | 160x30x51 | 10mm thick, 13mm extension | Input Voltage:12-24VDC ± 15% Current (Stand By) 40mA - 25mA Current (Peak) 0.75A - 0.4A |
| YD25 | Single Acting Doors | 1,000,000 | 1000kg | 210x25x42 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD25L | Double Acting Doors | 1,000,000 | 1000kg | 210x25x43 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD25K | Single Acting Doors | 1,000,000 | 1000kg | 210x25x44 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD38 | Single Acting Doors | 1,000,000 | 2000kg | 203x37.5x44 | 14.2mm, 14mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 150mA - 90mA Current (Peak) 1A - 0.5A |
| YD38L | Single Acting Doors | 1,000,000 | 2000kg | 203x37.5x45 | 14.2mm, 14mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 150mA - 90mA Current (Peak) 1A - 0.5A |
| YG80 | Securing all large openings, High strength, extream heat and cold enviroments | 300000 | 5000kg | 80x80x150 | 18mm, 30mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 40mA - 30mA Current (Peak) 1A - 0.5A - 2A with heater |
