With an 18mm diameter stainless steel bolt pin and reinforced strike design, the Orca has a tested and approved holding force that exceeds the highest level of the UL Burglary Resistant Electric Locking standard UL 1034. The mounting bolts for the lock are concealed under the lock's cover, which can't be removed without triggering the tamper detection monitor.
The Orca has been designed from the ground up with weatherproofing as a critical feature. With an IP67 certified design, E-coated aluminium lock body and strike for excellent corrosion resistance, and a built-in heater for continued functionality in sub-zero climates, the Orca can handle any environment it is placed in.
The Orca has a range of output signals - bolt locked and unlocked position, door position, and tamper detection. Monitoring the position of the door and whether the lock is open or closed, the Orca will connect to your access control system to display the status of the lock for security.
With the heater disabled, the Orca will draw as little as 50mA in standby and only 300mA operation at 12VDC. Low current paired with high-security access control makes the Orca a preferred product choice for many industry leaders.
With user-selectable fail safe / fail secure modes, three user-selectable control methods, and multiple attempts to lock or unlock, the Orca is ready for a wide range of application requirements and can be integrated with many access control or alarm systems.

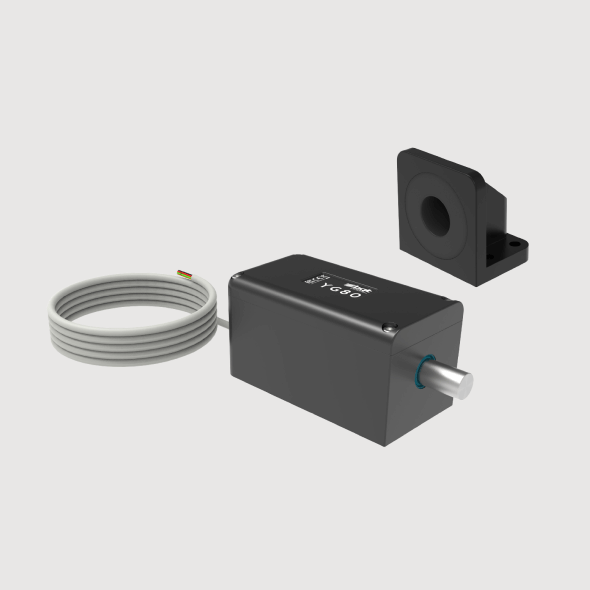

The symmetrical design means the YG80 can be installed both horizontally and vertically in indoor and outdoor environments. In addition, the included three-metre flying cable ensures easy connection for all the monitoring, control, and the 12-24VDC power supply.
Holding the UL certification, the Orca has been tested and awarded the American Standard - UL certification, which specifies requirements and test methods for strength and durability of electrical and electronic components for all types of electromechanically operated locks and striking plates used on doors, window doors and entrance doors in buildings, and has complied with these standards and testing, to ensure product integrity.
Door Gap 15mm maximum
Static Strength 50,000 newtons (5,000Kg) ( exceeded UL1034 standard 6673 N (1500 lbf))
Dynamic Strength 200 joules (exceeded UL 1034 standard 95 J (70 ft•lbf))
Endurance Cycle tested to 300,000 operations
Bolt Pin ø18mm, 30mm extension, ø28mm receiver
Voltage at Lock 12-24VDC ±15%
Current Usage Standby: 40mA@12V, 30mA@24V, Maximum: 1.0A@12V, 0.5A@24V, 2.0A@24V with heater on
Monitor Switch Ratings 24VDC, 0.5A
Materials Lock / Strike Body: Aluminium 383Bolt Pin: Stainless Steel 304Strike Ring: UV Stabilized ABS
Compliance and Certification CE Compliant, RoHS 2 Compliant, FCC Part 15 / ISED Compliant, IP67 Ingress Protection, Grade 4 Corrosion Resistance (EN 1670:2007), Cold Operation -35°C (EN 60068-2-1:2007), Dry Heat Operation +70°C (EN 60068-2-2:2007)
The YG80 lock is user fail safe / secure configurable and is supplied with a matching strike plate.
The lock is designed to be mounted vertically or horizontally, indoors or out. There are not standard mounting accessories however please contact BQT Solutions if you have specific installation requirements.
| Name | Application | Lifecycle | Holding Gorce | Lock Dimentions | Bolt Pin Dimnetions | Power Usage |
| YD30 ( Cobalt) | Securung misaligned Double acting doors, relasing under sideload pressure | 300,000 | 1000kg | 255x30x51 | 10mm thick, 13mm extension (2 Pieces) | Input Voltage : 12-24VDC ± 15% Current (Stand By) 40mA - 30mA Current (Peak) 1A - 0.5A |
| YD30M ( Cobalt Mini) | Securung misaligned single acting doors, relasing under sideload pressure | 300,000 | 1000kg | 160x30x51 | 10mm thick, 13mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 40mA - 30mA Current (Peak) 1A - 0.5A |
| YD25 | Single Acting Doors | 1,000,000 | 1000kg | 210x25x42 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD25L | Double Acting Doors | 1,000,000 | 1000kg | 210x25x43 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD25K | Single Acting Doors | 1,000,000 | 1000kg | 210x25x44 | 12.7mm, 16mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 130mA - 80mA Current (Peak) 1A - 0.5A |
| YD38 | Single Acting Doors | 1,000,000 | 2000kg | 203x37.5x44 | 14.2mm, 14mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 150mA - 90mA Current (Peak) 1A - 0.5A |
| YD38L | Single Acting Doors | 1,000,000 | 2000kg | 203x37.5x45 | 14.2mm, 14mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 150mA - 90mA Current (Peak) 1A - 0.5A |
| YG80 | Securing all large openings, High strength, extream heat and cold enviroments | 300000 | 5000kg | 80x80x150 | 18mm, 30mm extension | Input Voltage : 12-24VDC ± 15% Current (Stand By) 40mA - 30mA Current (Peak) 1A - 0.5A - 2A with heater |
